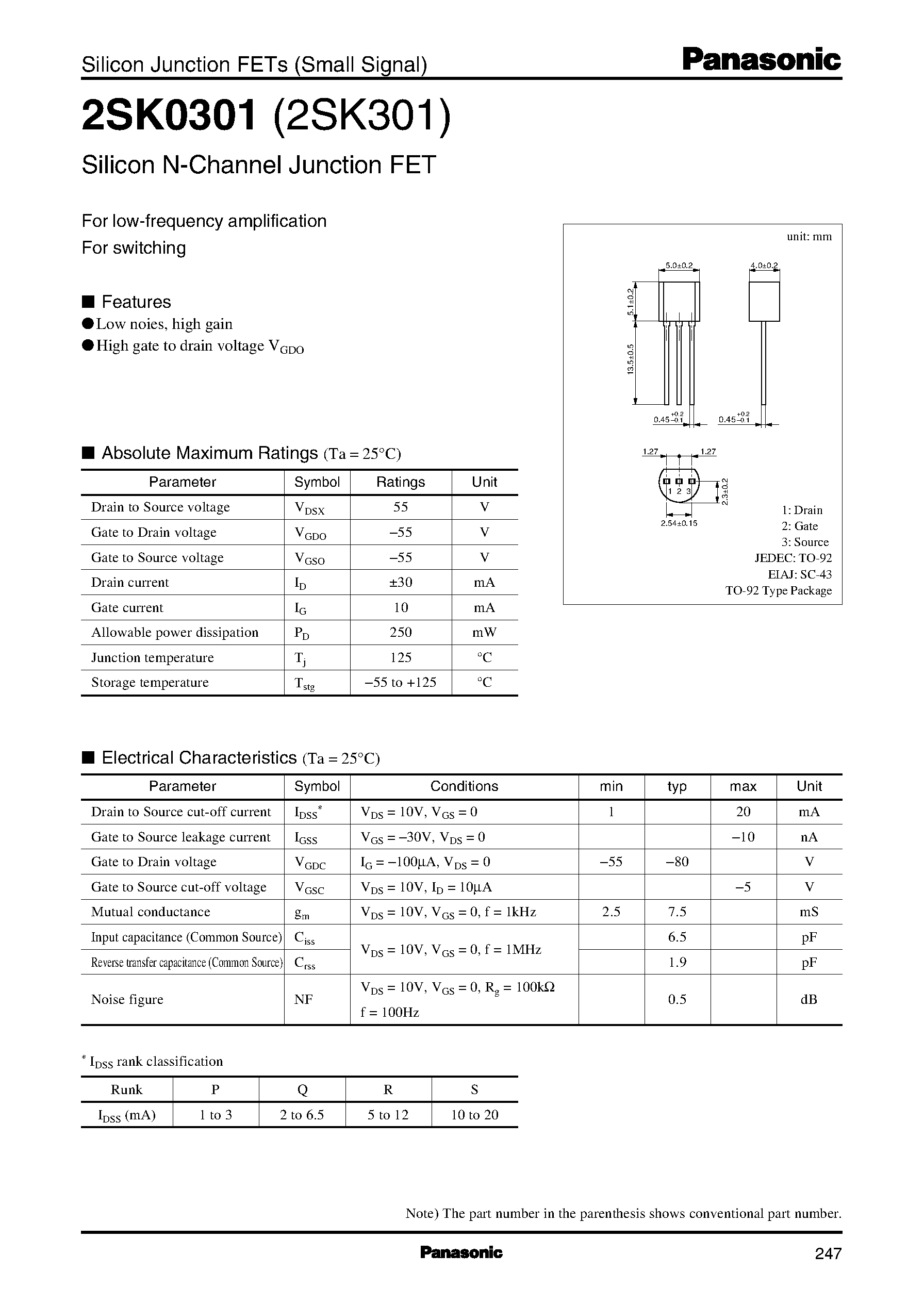

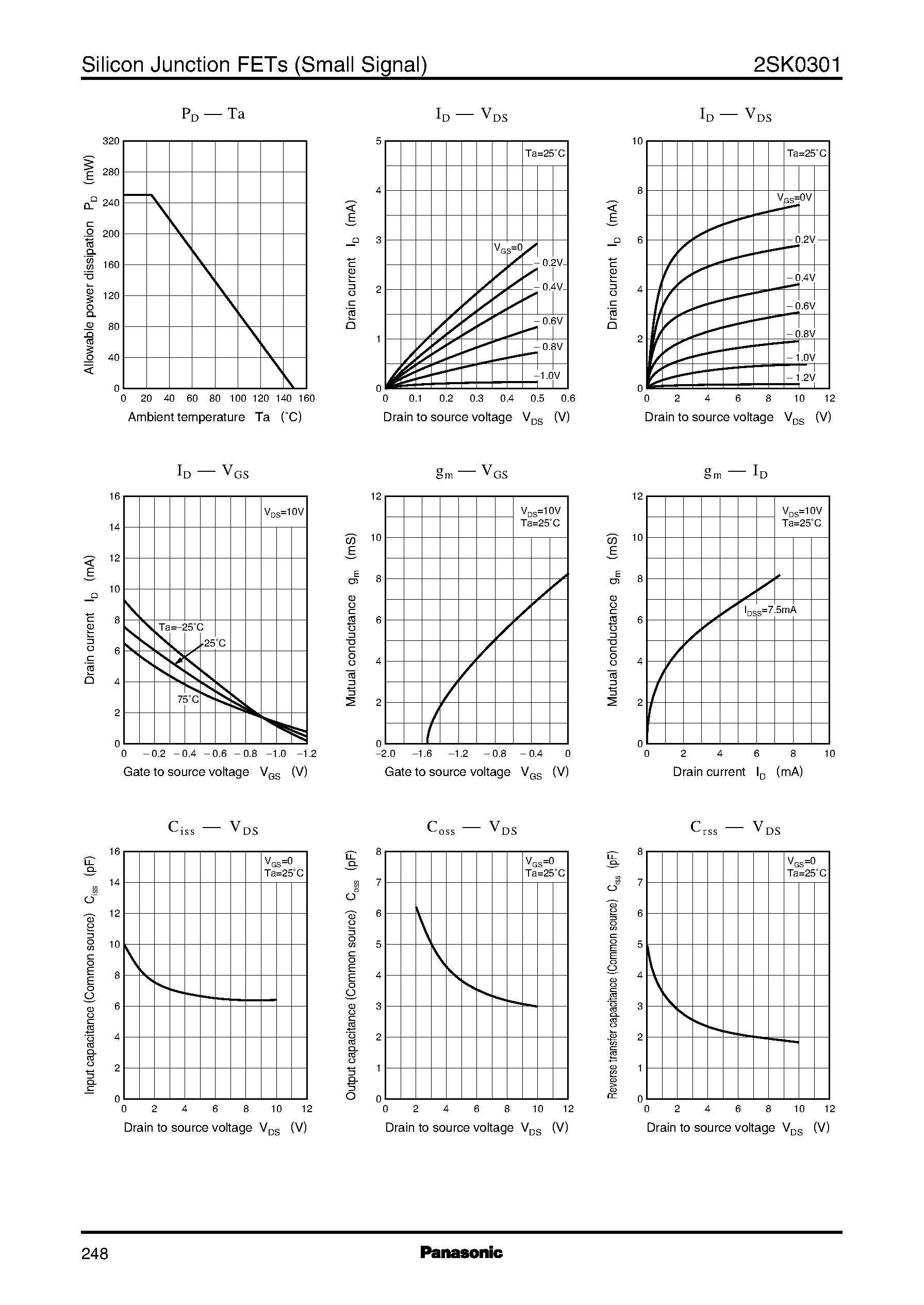

Panasonic Semiconductor 2SK0301 - 2SK0301 (Panasonic Semiconductor) - Silicon N-Channel Junction FET
| Наименование: | 2SK0301 |
|---|---|
| Производитель: | Panasonic Semiconductor |
| Файл: | 2SK0301_Panasonic Semiconductor.pdf |
| Скачать datasheet: |
|
| Описание: | Silicon Junction FETs (Small Signal) 2SK0301 (2SK301) Silicon N-Channel Junction FET For low-frequency amplification For switching 5.0В±0.2 5.1В±0.2 4.0В±0.2 unit: mm I Features 13.5В±0.5 G Low noies, high gain G High gate to drain voltage VGDO 0.45 –0.1 +0.2 0.45 –0.1 +0.2 I Absolute Maximum Ratings (Ta = 25В°C) Parameter Drain to Source voltage Gate to Drain voltage Gate to Source voltage Drain current Gate current Allowable power dissipation Junction temperature Storage temperature Symbol VDSX VGDO VGSO ID IG PD Tj Tstg Ratings 55 в€’55 в€’55 В±30 10 250 125 в€’55 to +125 Unit V V V mA mA mW В°C В°C 1.27 1.27 1 2 3 2.54В±0.15 I Electrical Characteristics (Ta = 25В°C) Parameter Drain to Source cut-off current Gate to Source leakage current Gate to Drain voltage Gate to Source cut-off voltage Mutual conductance Symbol IDSS* IGSS VGDC VGSC gm Conditions VDS = 10V, VGS = 0 VGS = в€’30V, VDS = 0 IG = в€’100ВµA, VDS = 0 VDS = 10V, ID = 10ВµA VDS = 10V, VGS = 0, f = 1kHz VDS = 10V, VGS = 0, f = 1MHz VDS = 10V, VGS = 0, Rg = 100kΩ f = 100Hz 2.5 7.5 6.5 1.9 0.5 в€’55 в€’80 в€’5 min 1 typ max 20 в€’10 Unit mA nA V V mS pF pF dB Input capacitance (Common Source) Ciss Reverse transfer capacitance (Common Source) Crss Noise figure NF * IDSS rank classification Runk IDSS (mA) P 1 to 3 Q 2 to 6.5 R 5 to 12 S 10 to 20 Note) The part number in the parenthesis shows conventional part number. 2.3В±0.2 1: Drain 2: Gate 3: Source JEDEC: TO-92 EIAJ: SC-43 TO-92 Type Package 247 Silicon Junction FETs (Small Signal) P D пЈ§ Ta 320 5 Ta=25ЛљC 280 4 8 2SK0301 I D пЈ§ V DS 10 Ta=25ЛљC I D пЈ§ V DS Allowable power dissipation PD (mW) Drain current ID (mA) 200 160 120 80 40 Drain current ID (mA) 240 VGS=0V 3 VGS=0 – 0.2V 6 – 0.2V – 0.4V 4 – 0.6V 2 – 0.8V – 1.0V 2 – 0.4V – 0.6V 1 – 0.8V –1.0V – 1.2V 0 0.6 0 2 4 6 8 10 12 0 0 20 40 60 80 100 120 140 160 0 0 0.1 0.2 0.3 0.4 0.5 Ambient temperature Ta (ЛљC) Drain to source voltage VDS (V) Drain to source voltage VDS (V) I D пЈ§ V GS 16 VDS=10V 14 12 g m пЈ§ VGS 12 VDS=10V Ta=25ЛљC gm пЈ§ ID VDS=10V Ta=25ЛљC Mutual conductance gm (mS) 10 Mutual conductance gm (mS) 10 Drain current ID (mA) 12 10 8 6 4 75ЛљC 2 0 0 – 0.2 – 0.4 – 0.6 – 0.8 –1.0 –1.2 8 8 IDSS=7.5mA Ta=–25ЛљC 25ЛљC 6 6 4 4 2 2 0 –2.0 0 –1.6 –1.2 – 0.8 – 0.4 0 0 2 4 6 8 10 Gate to source voltage VGS (V) Gate to source voltage VGS (V) Drain current ID (mA) C i s s пЈ§ V DS Output capacitance (Common source) Coss (pF) C oss пЈ§ V DS VGS=0 Ta=25ЛљC VGS=0 Ta=25ЛљC 7 6 5 4 3 2 1 0 0 2 4 6 8 10 12 C rss пЈ§ V DS Reverse transfer capacitance (Common source) Crss (pF) 8 VGS=0 Ta=25ЛљC 7 6 5 4 3 2 1 0 0 2 4 6 8 10 12 Input capacitance (Common source) Ciss (pF) 16 14 12 10 8 6 4 2 0 0 2 4 6 8 10 12 8 Drain to source voltage VDS (V) Drain to source voltage VDS (V) Drain to source voltage VDS (V) 248 Request for your special attention and precautions in using the technical information and semiconductors described in this material (1) An export permit needs to be obtained from the competent authorities of the Japanese Government if any of the products or technologies described in this material and controlled under the "Foreign Exchange and Foreign Trade Law" is to be exported or taken out of Japan. (2) The technical information described in this material is limited to showing representative characteristics and applied circuit examples of the products. It does not constitute the warranting of industrial property, the granting of relative rights, or the granting of any license. (3) The products described in this material are intended to be used for standard applications or general electronic equipment (such as office equipment, communications equipment, measuring instruments and household appliances). Consult our sales staff in advance for information on the following applications: • Special applications (such as for airplanes, aerospace, automobiles, traffic control equipment, combustion equipment, life support systems and safety devices) in which exceptional quality and reliability are required, or if the failure or malfunction of the products may directly jeopardize life or harm the human body. • Any applications other than the standard applications intended. (4) The products and product specifications described in this material are subject to change without notice for reasons of modification and/or improvement. At the final stage of your design, purchasing, or use of the products, therefore, ask for the most up-to-date Product Standards in advance to make sure that the latest specifications satisfy your requirements. (5) When designing your equipment, comply with the guaranteed values, in particular those of maximum rating, the range of operating power supply voltage and heat radiation characteristics. Otherwise, we will not be liable for any defect which may arise later in your equipment. Even when the products are used within the guaranteed values, redundant design is recommended, so that such equipment may not violate relevant laws or regulations because of the function of our products. (6) When using products for which dry packing is required, observe the conditions (including shelf life and after-unpacking standby time) agreed upon when specification sheets are individually exchanged. (7) No part of this material may be reprinted or reproduced by any means without written permission from our company. Please read the following notes before using the datasheets A. These materials are intended as a reference to assist customers with the selection of Panasonic semiconductor products best suited to their applications. Due to modification or other reasons, any information contained in this material, such as available product types, technical data, and so on, is subject to change without notice. Customers are advised to contact our semiconductor sales office and obtain the latest information before starting precise technical research and/or purchasing activities. B. Panasonic is endeavoring to continually improve the quality and reliability of these materials but there is always the possibility that further rectifications will be required in the future. Therefore, Panasonic will not assume any liability for any damages arising from any errors etc. that may appear in this material. C. These materials are solely intended for a customer's individual use. Therefore, without the prior written approval of Panasonic, any other use such as reproducing, selling, or distributing this material to a third party, via the Internet or in any other way, is prohibited. 2001 MAR |
