National Semiconductor 54AC05 - 54AC05 (National Semiconductor) - Hex Inverter
| Наименование: | 54AC05 |
|---|---|
| Производитель: | National Semiconductor |
| Файл: | 54AC05_National Semiconductor.pdf |
| Скачать datasheet: |
|

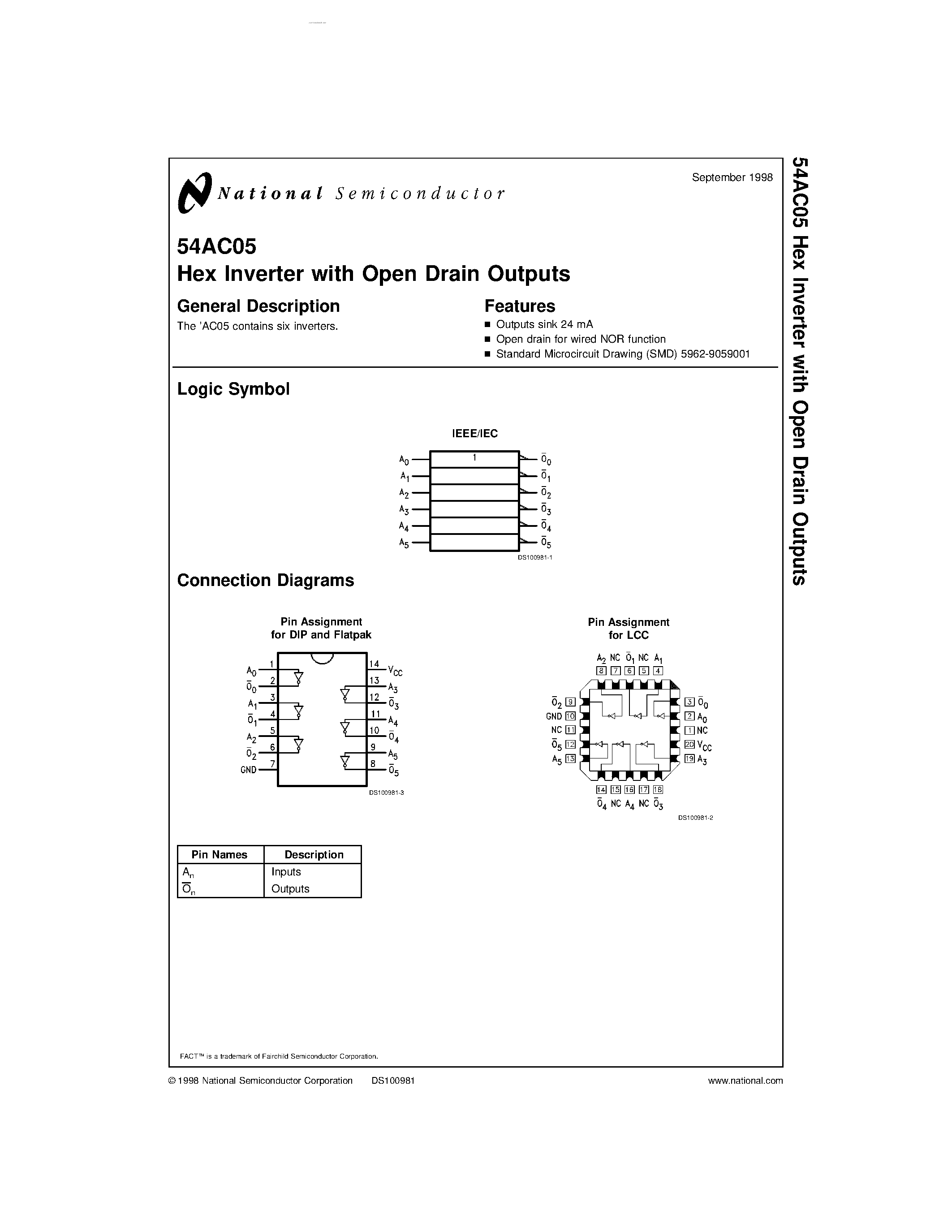

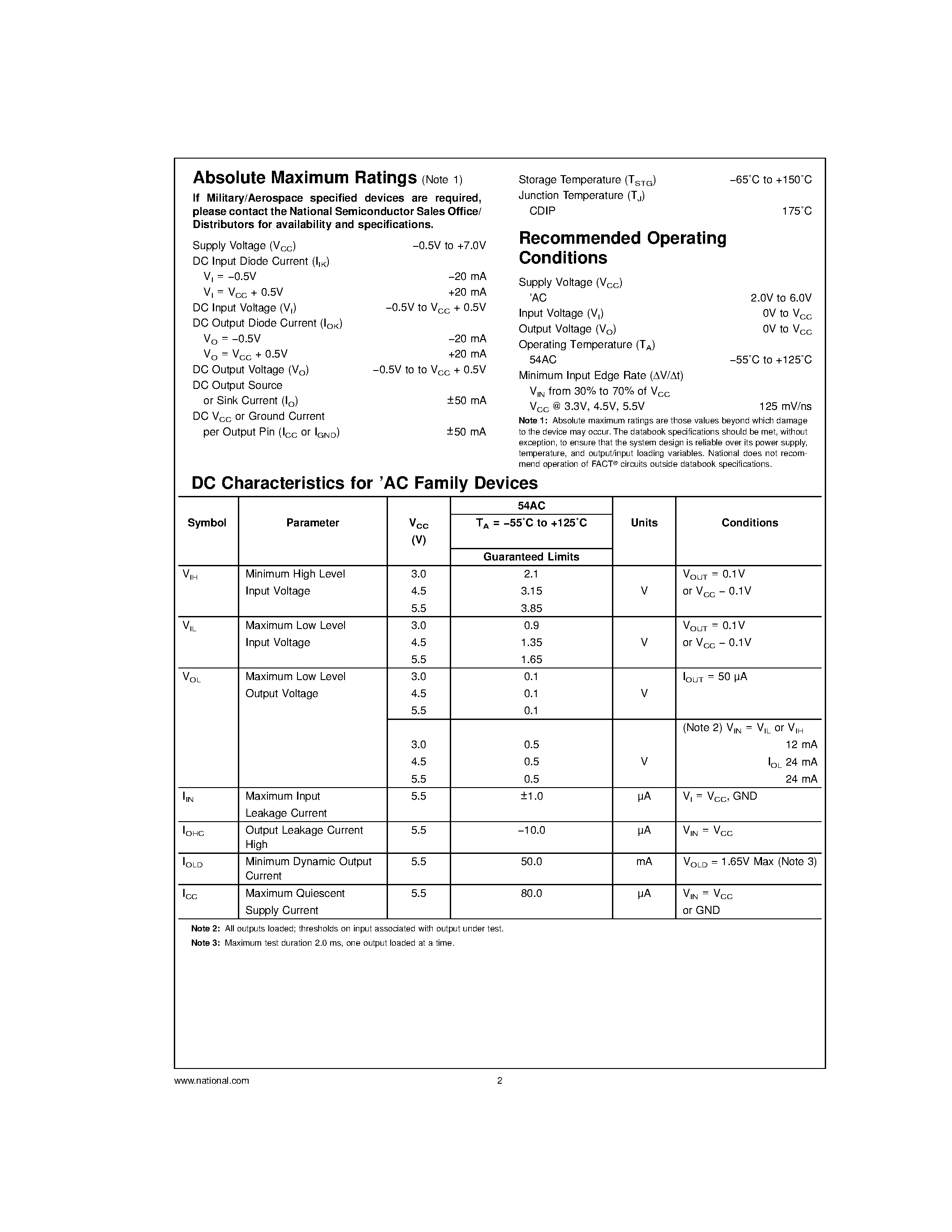

| Описание: | 54AC05 Hex Inverter with Open Drain Outputs September 1998 54AC05 Hex Inverter with Open Drain Outputs General The ’AC05 contains six inverters. Features n Outputs sink 24 mA n Open drain for wired NOR function n Standard Microcircuit Drawing (SMD) 5962-9059001 Logic Symbol IEEE/IEC DS100981-1 Connection Diagrams Pin Assignment for DIP and Flatpak Pin Assignment for LCC DS100981-3 DS100981-2 Pin Names An On Inputs Outputs FACTв„ў is a trademark of Fairchild Semiconductor Corporation. В© 1998 National Semiconductor Corporation DS100981 www.national.com Absolute Maximum Ratings (Note 1) If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications. Supply Voltage (VCC) DC Input Diode Current (IIK) VI = в€’0.5V VI = VCC + 0.5V DC Input Voltage (VI) DC Output Diode Current (IOK) VO = в€’0.5V VO = VCC + 0.5V DC Output Voltage (VO) DC Output Source or Sink Current (IO) DC VCC or Ground Current per Output Pin (ICC or IGND) в€’0.5V to +7.0V в€’20 mA +20 mA в€’0.5V to VCC + 0.5V в€’20 mA +20 mA в€’0.5V to to VCC + 0.5V Storage Temperature (TSTG) Junction Temperature (TJ) CDIP в€’65ЛљC to +150ЛљC 175ЛљC Recommended Operating Conditions Supply Voltage (VCC) ’AC Input Voltage (VI) Output Voltage (VO) Operating Temperature (TA) 54AC Minimum Input Edge Rate (∆V/∆t) VIN from 30% to 70% of VCC VCC @ 3.3V, 4.5V, 5.5V 2.0V to 6.0V 0V to VCC 0V to VCC в€’55ЛљC to +125ЛљC В± 50 mA В± 50 mA 125 mV/ns Note 1: Absolute maximum ratings are those values beyond which damage to the device may occur. The databook specifications should be met, without exception, to ensure that the system design is reliable over its power supply, temperature, and output/input loading variables. National does not recommend operation of FACT В® circuits outside databook specifications. DC Characteristics for ’AC Family Devices Symbol Parameter VCC (V) Guaranteed Limits VIH Minimum High Level Input Voltage VIL Maximum Low Level Input Voltage VOL Maximum Low Level Output Voltage 3.0 4.5 5.5 3.0 4.5 5.5 3.0 4.5 5.5 3.0 4.5 5.5 IIN IOHC IOLD ICC Maximum Input Leakage Current Output Leakage Current High Minimum Dynamic Output Current Maximum Quiescent Supply Current Note 2: All outputs loaded; thresholds on input associated with output under test. Note 3: Maximum test duration 2.0 ms, one output loaded at a time. 54AC TA = в€’55ЛљC to +125ЛљC Units Conditions 2.1 3.15 3.85 0.9 1.35 1.65 0.1 0.1 0.1 V V V VOUT = 0.1V or VCC в€’ 0.1V VOUT = 0.1V or VCC в€’ 0.1V IOUT = 50 ВµA (Note 2) VIN = VIL or VIH 0.5 0.5 0.5 V ВµA ВµA mA ВµA VI = VCC, GND VIN = VCC VOLD = 1.65V Max (Note 3) VIN = VCC or GND 12 mA IOL 24 mA 24 mA 5.5 5.5 5.5 5.5 В± 1.0 в€’10.0 50.0 80.0 www.national.com 2 AC Electrical Characteristics VCC Symbol Parameter (V) (Note 4) Min tPLH tPHL Propagation Delay Propagation Delay 3.3 5.0 3.3 5.0 Note 4: Voltage Range 3.3 is 3.3V В± 0.3V Voltage Range 5.0 is 5.0V В± 0.5V 54AC TA = в€’55ЛљC to +125ЛљC CL = 50 pF Max 15.5 15.5 8.0 6.0 ns ns 1.0 1.0 1.0 1.5 Units Fig. No. Capacitance Symbol CIN CPD Parameter Input Capacitance Power Dissipation Capacitance Max 10.0 50.0 Units pF pF Conditions VCC = Open VCC = 5.0V 3 www.national.com 4 Physical Dimensions inches (millimeters) unless otherwise noted 20 Terminal Ceramic Leadless Chip Carrier (L) NS Package Number E20A 14 Lead Ceramic Dual-In-Line Package (D) NS Package Number J14A 5 www.national.com 54AC05 Hex Inverter with Open Drain Outputs Physical Dimensions inches (millimeters) unless otherwise noted (Continued) 14 Lead Ceramic Flatpak (F) NS Package Number W14B LIFE SUPPORT POLICY NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL SEMICONDUCTOR CORPORATION. As used herein: 2. A critical component in any component of a life support 1. Life support devices or systems are devices or sysdevice or system whose failure to perform can be reatems which, (a) are intended for surgical implant into sonably expected to cause the failure of the life support the body, or (b) support or sustain life, and whose faildevice or system, or to affect its safety or effectiveness. ure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant injury to the user. National Semiconductor Corporation Americas Tel: 1-800-272-9959 Fax: 1-800-737-7018 Email: support@nsc.com National Semiconductor Europe Fax: +49 (0) 1 80-530 85 86 Email: europe.support@nsc.com Deutsch Tel: +49 (0) 1 80-530 85 85 English Tel: +49 (0) 1 80-532 78 32 FranГ§ais Tel: +49 (0) 1 80-532 93 58 Italiano Tel: +49 (0) 1 80-534 16 80 National Semiconductor Asia Pacific Customer Response Group Tel: 65-2544466 Fax: 65-2504466 Email: sea.support@nsc.com National Semiconductor Japan Ltd. Tel: 81-3-5620-6175 Fax: 81-3-5620-6179 www.national.com National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications. |
