National Semiconductor 54AC08 - 54AC08 (National Semiconductor) - Quad 2-Input AND Gate
| Наименование: | 54AC08 |
|---|---|
| Производитель: | National Semiconductor |
| Файл: | 54AC08_National Semiconductor.pdf |
| Скачать datasheet: |
|

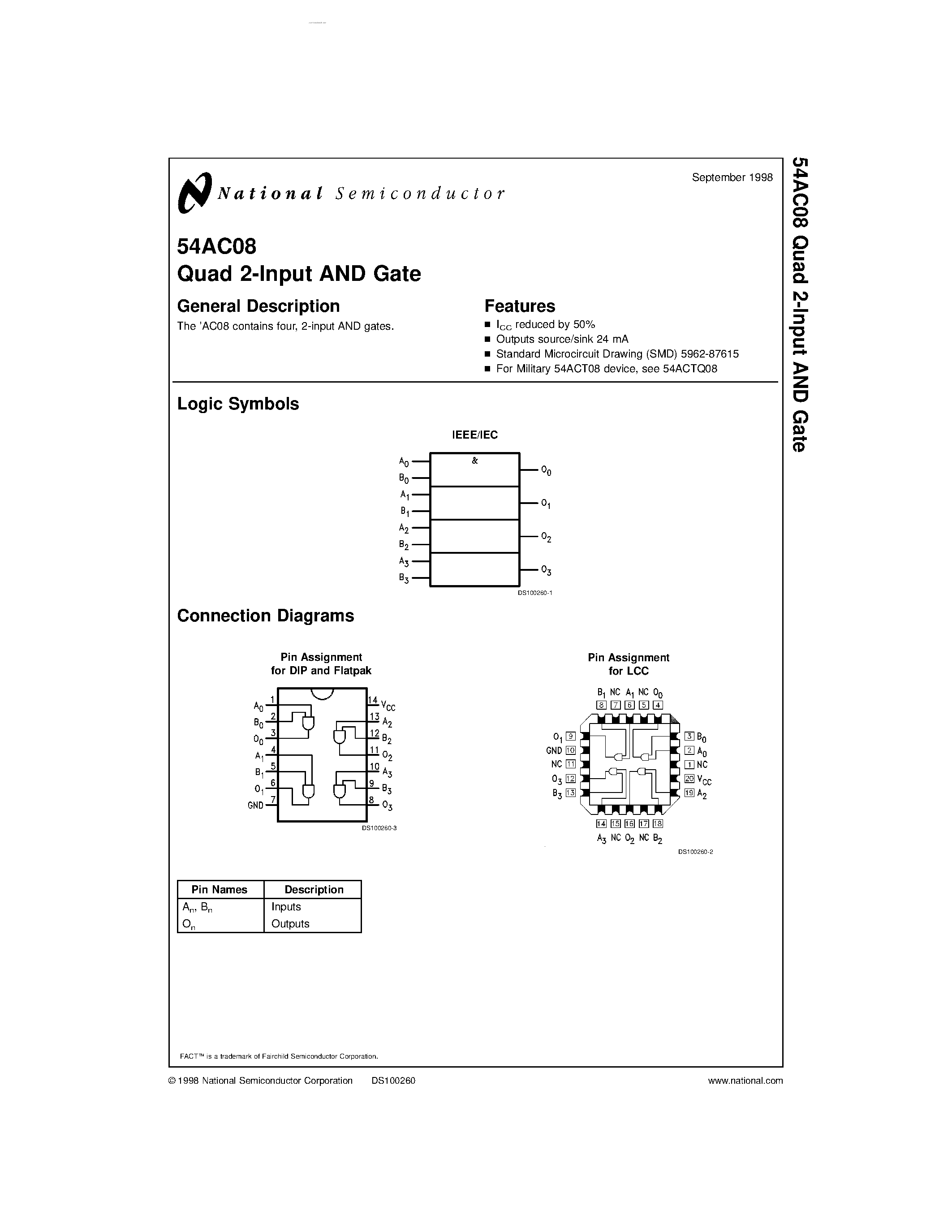

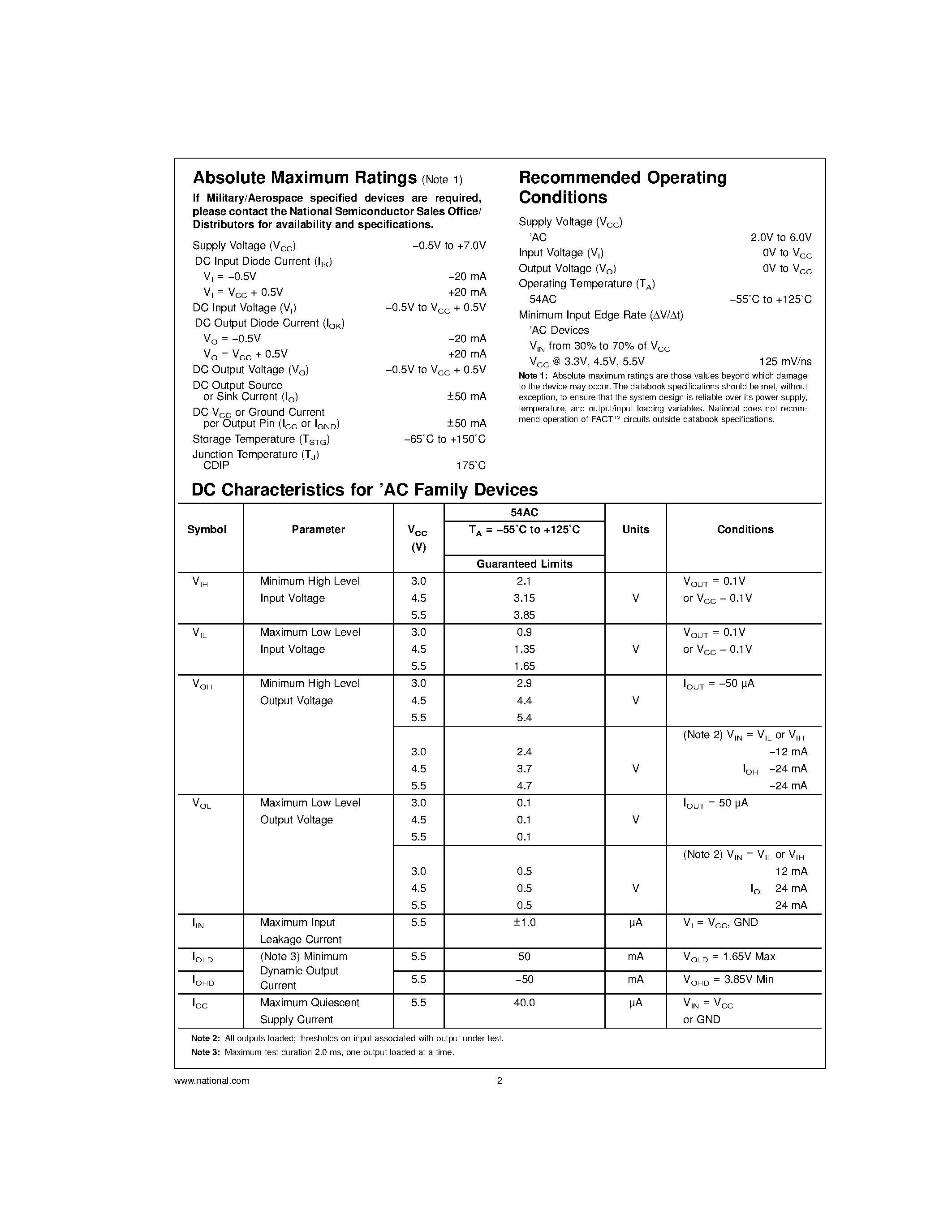

| Описание: | 54AC08 Quad 2-Input AND Gate September 1998 54AC08 Quad 2-Input AND Gate General The ’AC08 contains four, 2-input AND gates. Features n n n n ICC reduced by 50% Outputs source/sink 24 mA Standard Microcircuit Drawing (SMD) 5962-87615 For Military 54ACT08 device, see 54ACTQ08 Logic Symbols IEEE/IEC DS100260-1 Connection Diagrams Pin Assignment for DIP and Flatpak Pin Assignment for LCC DS100260-3 DS100260-2 Pin Names An, Bn On Inputs Outputs FACTв„ў is a trademark of Fairchild Semiconductor Corporation. В© 1998 National Semiconductor Corporation DS100260 www.national.com Absolute Maximum Ratings (Note 1) If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications. Supply Voltage (VCC) DC Input Diode Current (IIK) VI = в€’0.5V VI = VCC + 0.5V DC Input Voltage (VI) DC Output Diode Current (IOK) VO = в€’0.5V VO = VCC + 0.5V DC Output Voltage (VO) DC Output Source or Sink Current (IO) DC VCC or Ground Current per Output Pin (ICC or IGND) Storage Temperature (TSTG) Junction Temperature (TJ) CDIP в€’0.5V to +7.0V в€’20 mA +20 mA в€’0.5V to VCC + 0.5V в€’20 mA +20 mA в€’0.5V to VCC + 0.5V Recommended Operating Conditions Supply Voltage (VCC) ’AC Input Voltage (VI) Output Voltage (VO) Operating Temperature (TA) 54AC Minimum Input Edge Rate (∆V/∆t) ’AC Devices VIN from 30% to 70% of VCC VCC @ 3.3V, 4.5V, 5.5V 2.0V to 6.0V 0V to VCC 0V to VCC в€’55ЛљC to +125ЛљC 125 mV/ns В± 50 mA В± 50 mA в€’65ЛљC to +150ЛљC 175ЛљC Note 1: Absolute maximum ratings are those values beyond which damage to the device may occur. The databook specifications should be met, without exception, to ensure that the system design is reliable over its power supply, temperature, and output/input loading variables. National does not recommend operation of FACTв„ў circuits outside databook specifications. DC Characteristics for ’AC Family Devices Symbol Parameter VCC (V) Guaranteed Limits VIH Minimum High Level Input Voltage VIL Maximum Low Level Input Voltage VOH Minimum High Level Output Voltage 3.0 4.5 5.5 3.0 4.5 5.5 3.0 4.5 5.5 3.0 4.5 5.5 VOL Maximum Low Level Output Voltage 3.0 4.5 5.5 3.0 4.5 5.5 IIN IOLD IOHD ICC Maximum Input Leakage Current (Note 3) Minimum Dynamic Output Current Maximum Quiescent Supply Current Note 2: All outputs loaded; thresholds on input associated with output under test. Note 3: Maximum test duration 2.0 ms, one output loaded at a time. 54AC TA = в€’55ЛљC to +125ЛљC Units Conditions 2.1 3.15 3.85 0.9 1.35 1.65 2.9 4.4 5.4 V V V VOUT = 0.1V or VCC в€’ 0.1V VOUT = 0.1V or VCC в€’ 0.1V IOUT = в€’50 ВµA (Note 2) VIN = VIL or VIH 2.4 3.7 4.7 0.1 0.1 0.1 (Note 2) VIN = VIL or VIH 0.5 0.5 0.5 V ВµA mA mA ВµA 12 mA IOL 24 mA 24 mA VI = VCC, GND VOLD = 1.65V Max VOHD = 3.85V Min VIN = VCC or GND V IOUT = 50 ВµA V в€’12 mA IOH в€’24 mA в€’24 mA 5.5 5.5 5.5 5.5 В± 1.0 50 в€’50 40.0 www.national.com 2 AC Electrical Characteristics VCC Symbol Parameter (V) (Note 4) Min tPLH tPHL Propagation Delay Propagation Delay 3.3 5.0 3.3 5.0 Note 4: Voltage Range 3.3 is 3.3V В± 0.3V Voltage Range 5.0 is 5.0V В± 0.5V 54AC TA = в€’55ЛљC to +125ЛљC CL = 50 pF Max 12.5 9.0 12.5 9.0 ns ns 1.0 1.0 1.0 1.0 Units Capacitance Symbol CIN CPD Parameter Input Capacitance Power Dissipation Capacitance Typ 4.5 20.0 Units pF pF Conditions VCC = OPEN VCC = 5.0V 3 www.national.com 4 Physical Dimensions inches (millimeters) unless otherwise noted 20-Terminal Ceramic Leadless Chip Carrier (L) NS Package Number E20A 14-Lead Ceramic Dual-In-Line Package (D) NS Package Number J14A 5 www.national.com 54AC08 Quad 2-Input AND Gate Physical Dimensions inches (millimeters) unless otherwise noted (Continued) 14-Lead Ceramic Flatpak (F) NS Package Number W14B LIFE SUPPORT POLICY NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL SEMICONDUCTOR CORPORATION. As used herein: 2. A critical component in any component of a life support 1. Life support devices or systems are devices or sysdevice or system whose failure to perform can be reatems which, (a) are intended for surgical implant into sonably expected to cause the failure of the life support the body, or (b) support or sustain life, and whose faildevice or system, or to affect its safety or effectiveness. ure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant injury to the user. National Semiconductor Corporation Americas Tel: 1-800-272-9959 Fax: 1-800-737-7018 Email: support@nsc.com National Semiconductor Europe Fax: +49 (0) 1 80-530 85 86 Email: europe.support@nsc.com Deutsch Tel: +49 (0) 1 80-530 85 85 English Tel: +49 (0) 1 80-532 78 32 FranГ§ais Tel: +49 (0) 1 80-532 93 58 Italiano Tel: +49 (0) 1 80-534 16 80 National Semiconductor Asia Pacific Customer Response Group Tel: 65-2544466 Fax: 65-2504466 Email: sea.support@nsc.com National Semiconductor Japan Ltd. Tel: 81-3-5620-6175 Fax: 81-3-5620-6179 www.national.com National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications. |
