Littelfuse V36ZA80P - V36ZA80P (Littelfuse) - Varistor Products
| Наименование: | V36ZA80P |
|---|---|
| Производитель: | Littelfuse |
| Файл: | V36ZA80P_Littelfuse.pdf |
| Скачать datasheet: |
|

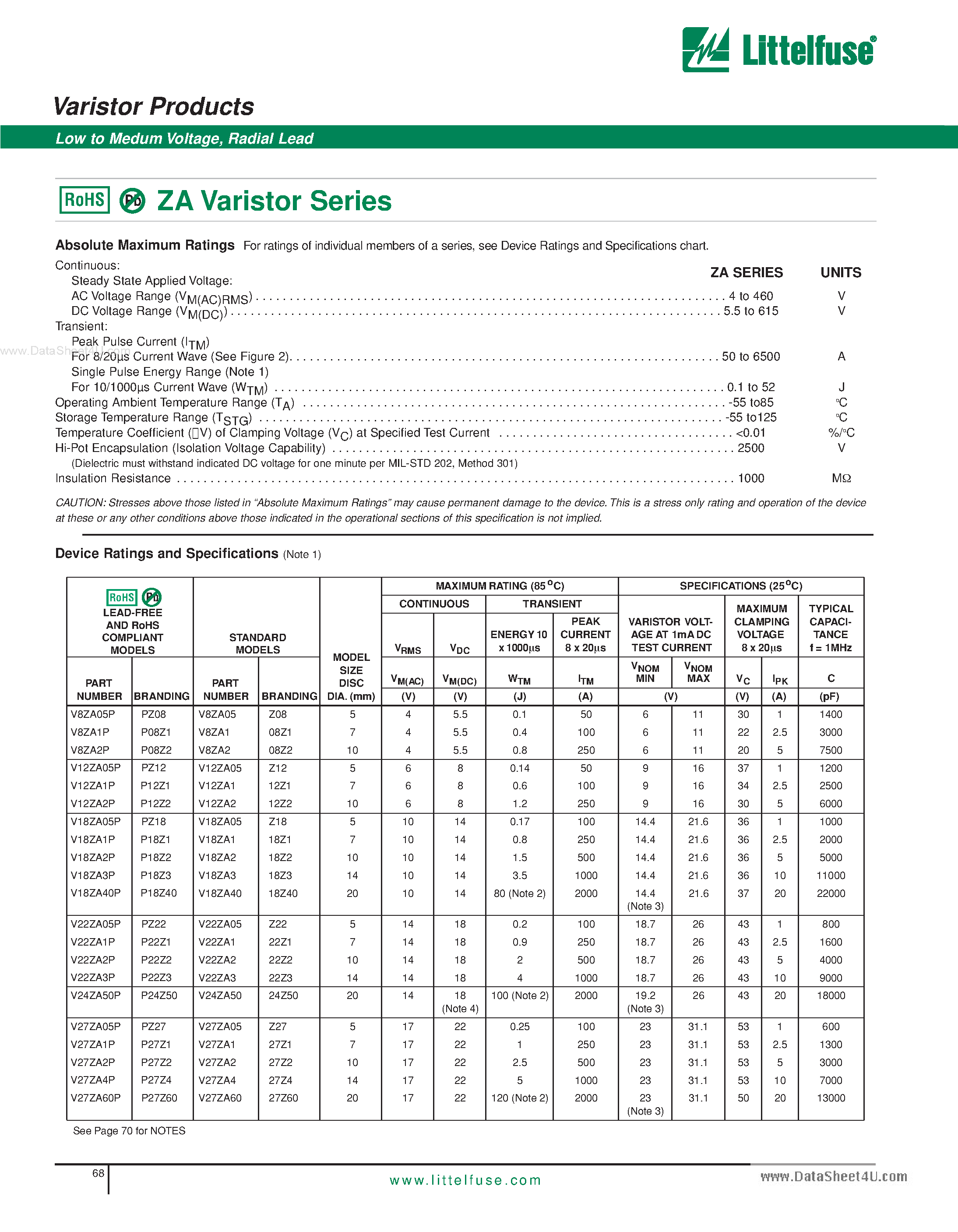

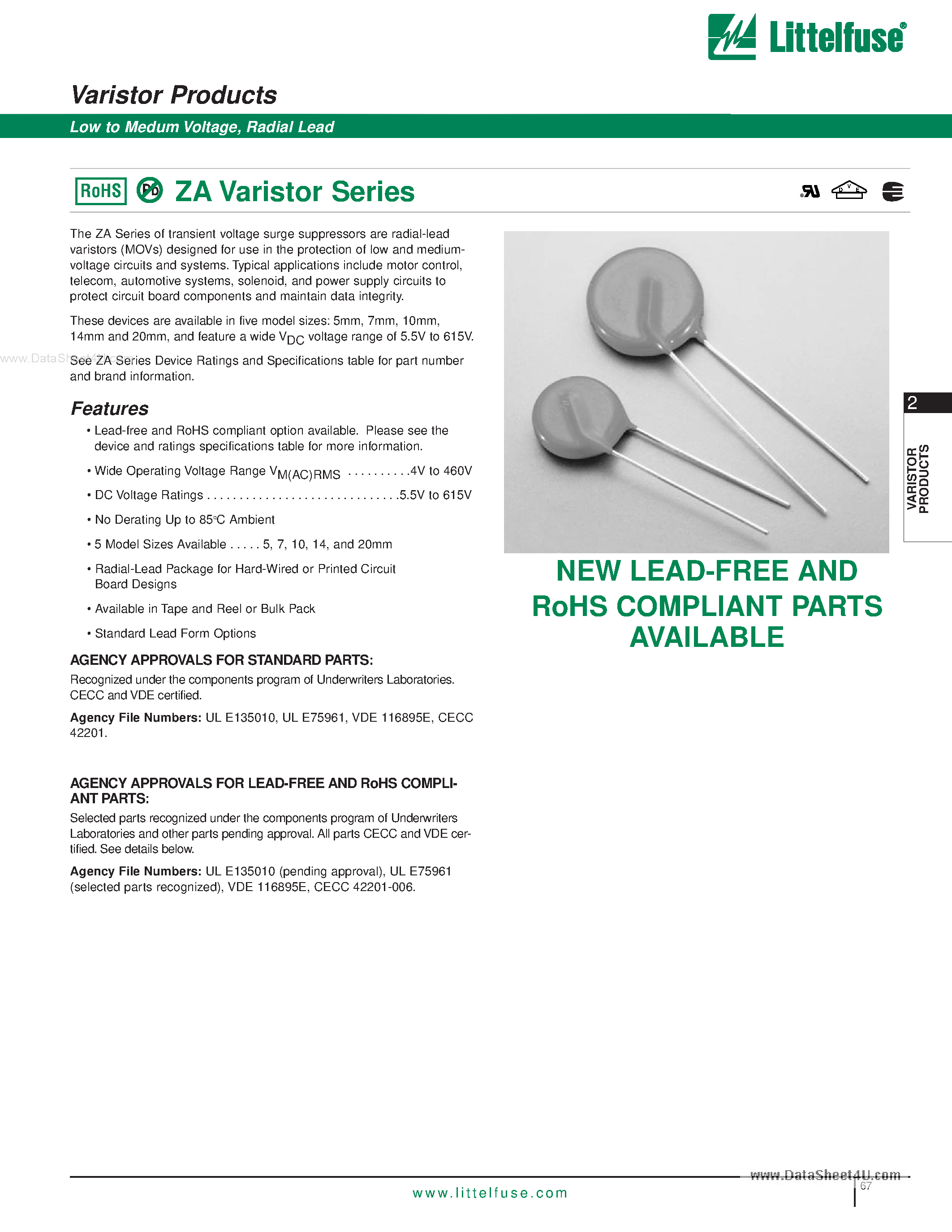

| Описание: | Varistor Products Low to Medum Voltage, Radial Lead RoHS Pb ZA Varistor Series D В® V E The ZA Series of transient voltage surge suppressors are radial-lead varistors (MOVs) designed for use in the protection of low and mediumvoltage circuits and systems. Typical applications include motor control, telecom, automotive systems, solenoid, and power supply circuits to protect circuit board components and maintain data integrity. These devices are available in five model sizes: 5mm, 7mm, 10mm, 14mm and 20mm, and feature a wide VDC voltage range of 5.5V to 615V. See ZA Series Device Ratings and Specifications table for part number and brand information. Features • Lead-free and RoHS compliant option available. Please see the device and ratings specifications table for more information. • Wide Operating Voltage Range VM(AC)RMS . . . . . . . . . .4V to 460V • DC Voltage Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.5V to 615V • No Derating Up to 85oC Ambient • 5 Model Sizes Available . . . . . 5, 7, 10, 14, and 20mm • Radial-Lead Package for Hard-Wired or Printed Circuit Board Designs • Available in Tape and Reel or Bulk Pack • Standard Lead Form Options 2 VARISTOR PRODUCTS NEW LEAD-FREE AND RoHS COMPLIANT PARTS AVAILABLE AGENCY APPROVALS FOR STANDARD PARTS: Recognized under the components program of Underwriters Laboratories. CECC and VDE certified. Agency File Numbers: UL E135010, UL E75961, VDE 116895E, CECC 42201. AGENCY APPROVALS FOR LEAD-FREE AND RoHS COMPLIANT PARTS: Selected parts recognized under the components program of Underwriters Laboratories and other parts pending approval. All parts CECC and VDE certified. See details below. Agency File Numbers: UL E135010 (pending approval), UL E75961 (selected parts recognized), VDE 116895E, CECC 42201-006. w w w. l i t t e l f u s e . c o m 67 Varistor Products Low to Medum Voltage, Radial Lead RoHS Pb ZA Varistor Series UNITS V V Absolute Maximum Ratings For ratings of individual members of a series, see Device Ratings and Specifications chart. Continuous: ZA SERIES Steady State Applied Voltage: AC Voltage Range (VM(AC)RMS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 to 460 DC Voltage Range (VM(DC)) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 to 615 Transient: Peak Pulse Current (ITM) Current Wave (See Figure 2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 to 6500 For 8/20Вµs Single Pulse Energy Range (Note 1) For 10/1000Вµs Current Wave (WTM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.1 to 52 Operating Ambient Temperature Range (TA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55 to85 Storage Temperature Range (TSTG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55 to125 Temperature Coefficient ( V) of Clamping Voltage (VC) at Specified Test Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
