Fairchild Semiconductor 74ALVC00MTC - 74ALVC00MTC (Fairchild Semiconductor) - Low Voltage Quad 2-Input NAND Gate with 3.6V Tolerant Inputs and Outputs
| Наименование: | 74ALVC00MTC |
|---|---|
| Производитель: | Fairchild Semiconductor |
| Файл: | 74ALVC00MTC_Fairchild Semiconductor.pdf |
| Скачать datasheet: |
|

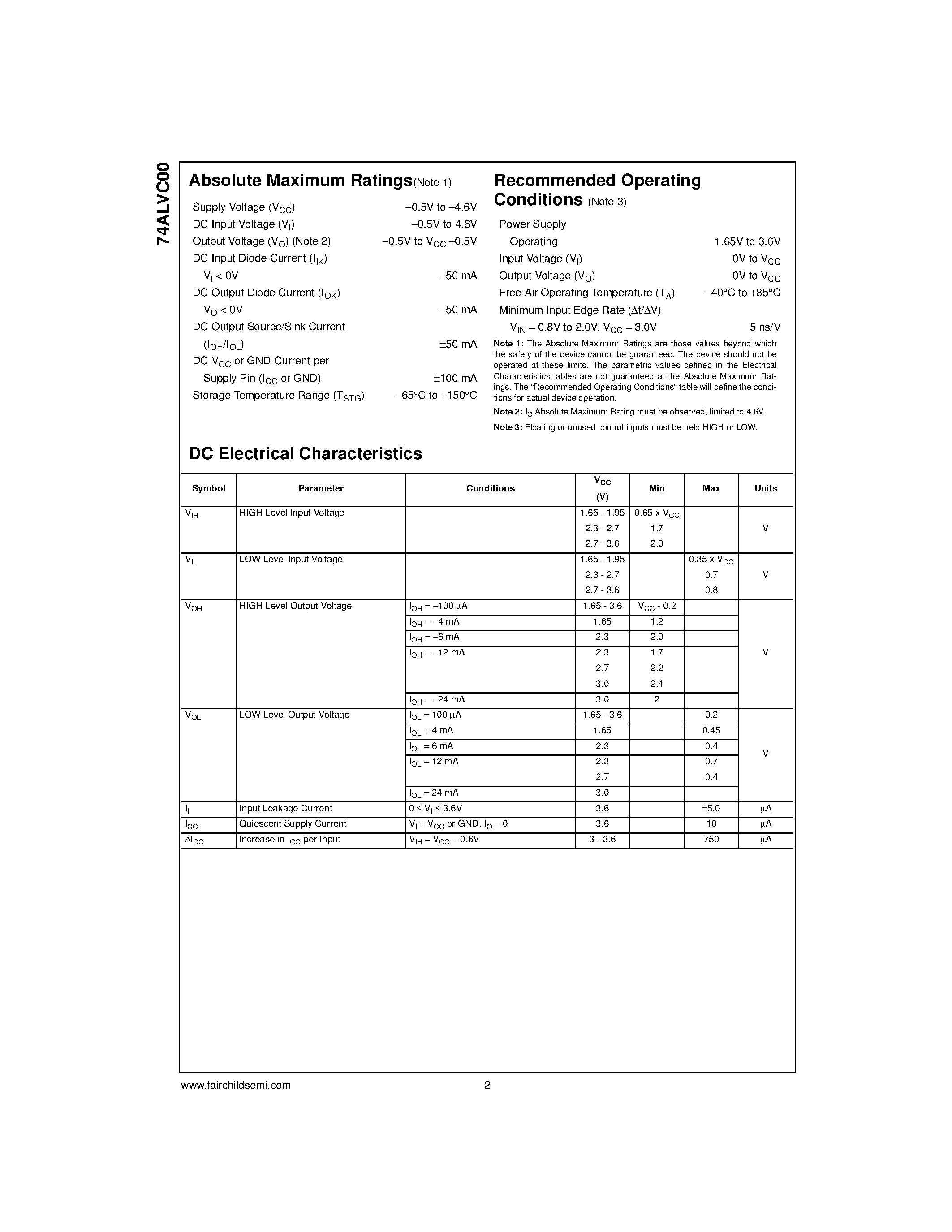

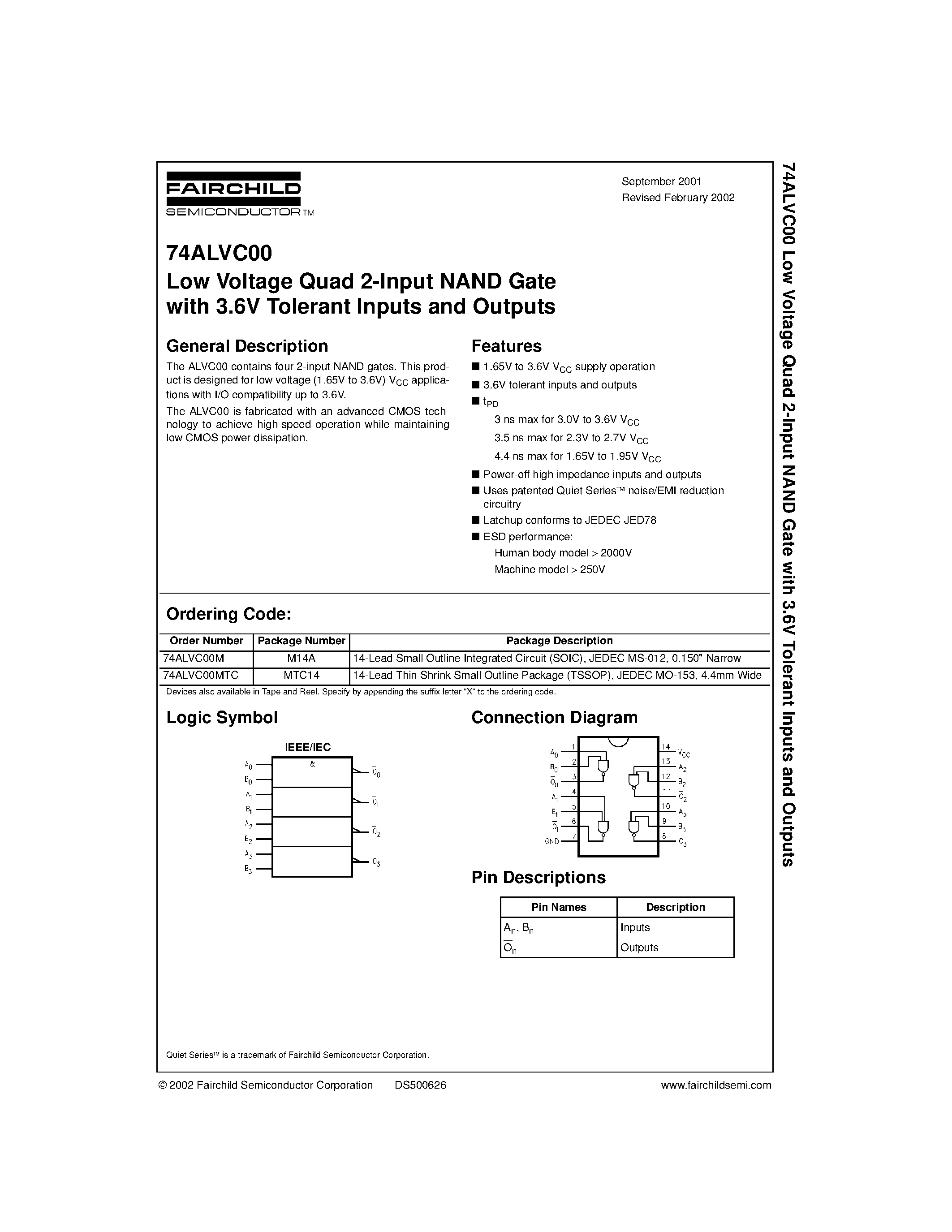

| Описание: | 74ALVC00 Low Voltage Quad 2-Input NAND Gate with 3.6V Tolerant Inputs and Outputs September 2001 Revised February 2002 74ALVC00 Low Voltage Quad 2-Input NAND Gate with 3.6V Tolerant Inputs and Outputs General The ALVC00 contains four 2-input NAND gates. This product is designed for low voltage (1.65V to 3.6V) VCC applications with I/O compatibility up to 3.6V. The ALVC00 is fabricated with an advanced CMOS technology to achieve high-speed operation while maintaining low CMOS power dissipation. Features s 1.65V to 3.6V VCC supply operation s 3.6V tolerant inputs and outputs s tPD 3 ns max for 3.0V to 3.6V VCC 3.5 ns max for 2.3V to 2.7V VCC 4.4 ns max for 1.65V to 1.95V VCC s Power-off high impedance inputs and outputs s Uses patented Quiet SeriesпЈЄ noise/EMI reduction circuitry s Latchup conforms to JEDEC JED78 s ESD performance: Human body model > 2000V Machine model > 250V Ordering Code: Order Number 74ALVC00M 74ALVC00MTC Package Number M14A MTC14 Package 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code. Logic Symbol IEEE/IEC Connection Diagram Pin s Pin Names An , Bn On Inputs Outputs Quiet SeriesпЈЄ is a trademark of Fairchild Semiconductor Corporation. В© 2002 Fairchild Semiconductor Corporation DS500626 www.fairchildsemi.com 74ALVC00 Absolute Maximum Ratings(Note 1) Supply Voltage (VCC) DC Input Voltage (VI) Output Voltage (VO) (Note 2) DC Input Diode Current (IIK) VI < 0V DC Output Diode Current (IOK) VO < 0V DC Output Source/Sink Current (IOH/IOL) DC VCC or GND Current per Supply Pin (I CC or GND) Storage Temperature Range (TSTG) в€’0.5V to +4.6V в€’0.5V to 4.6V в€’0.5V to VCC +0.5V в€’50 mA в€’50 mA В±50 mA В±100 mA в€’65В°C to +150В°C Recommended Operating Conditions (Note 3) Power Supply Operating Input Voltage (VI) Output Voltage (VO) Free Air Operating Temperature (TA) Minimum Input Edge Rate (∆t/∆V) VIN = 0.8V to 2.0V, VCC = 3.0V 5 ns/V Note 1: The Absolute Maximum Ratings are those values beyond which the safety of the device cannot be guaranteed. The device should not be operated at these limits. The parametric values defined in the Electrical Characteristics tables are not guaranteed at the Absolute Maximum Ratings. The “Recommended Operating Conditions” table will define the conditions for actual device operation. Note 2: IO Absolute Maximum Rating must be observed, limited to 4.6V. Note 3: Floating or unused control inputs must be held HIGH or LOW. 1.65V to 3.6V 0V to VCC 0V to VCC в€’40В°C to +85В°C DC Electrical Characteristics Symbol VIH Parameter HIGH Level Input Voltage Conditions VCC (V) 1.65 - 1.95 2.3 - 2.7 2.7 - 3.6 VIL LOW Level Input Voltage 1.65 - 1.95 2.3 - 2.7 2.7 - 3.6 VOH HIGH Level Output Voltage IOH = в€’100 ВµA IOH = в€’4 mA IOH = в€’6 mA IOH = в€’12 mA 1.65 - 3.6 1.65 2.3 2.3 2.7 3.0 IOH = в€’24 mA VOL LOW Level Output Voltage IOL = 100 ВµA IOL = 4 mA IOL = 6 mA IOL = 12 mA IOL = 24 mA II ICC ∆ICC Input Leakage Current Quiescent Supply Current Increase in ICC per Input 0 ≤ VI ≤ 3.6V VI = VCC or GND, IO = 0 VIH = VCC в€’ 0.6V 3.0 1.65 - 3.6 1.65 2.3 2.3 2.7 3.0 3.6 3.6 3 - 3.6 В±5.0 10 750 ВµA ВµA ВµA VCC - 0.2 1.2 2.0 1.7 2.2 2.4 2 0.2 0.45 0.4 0.7 0.4 V V Min 0.65 x VCC 1.7 2.0 0.35 x VCC 0.7 0.8 V V Max Units www.fairchildsemi.com 2 74ALVC00 AC Electrical Characteristics TA = в€’40В°C to +85В°C, RL = 500Ω Symbol Parameter CL = 50 pF VCC = 3.3V В± 0.3V Min tPHL, tPLH Propagation Delay 1.0 Max 3.0 VCC = 2.7V Min Max 3.5 CL = 30 pF VCC = 2.5V В± 0.2V Min 1.0 Max 3 VCC = 1.8V В± 0.15V Min 1.0 Max 4.4 ns Units Capacitance Symbol CIN CPD Parameter Input Capacitance Power Dissipation Capacitance VI = 0V or VCC f = 10 MHz, CL = 50 pF Conditions TA = +25В°C VCC 3.3 3.3 2.5 1.8 Typical 4.5 23 21 20 pF pF Units AC Loading and Waveforms TABLE 1. Values for Figure 1 TEST tPLH, tPHL SWITCH Open FIGURE 1. AC Test Circuit TABLE 2. Variable Matrix (Input Characteristics: f = 1MHz; tr = tf = 2ns; Z0 = 50Ω Symbol Vmi Vmo VCC 3.3V В± 0.3V 1.5V 1.5V 2.7V 1.5V 1.5V 2.5V В± 0.2V VCC/2 VCC/2 1.8V В± 0.15V VCC/2 VCC/2 FIGURE 2. Waveform for Inverting and Non-inverting Functions 3 www.fairchildsemi.com 74ALVC00 Physical Dimensions inches (millimeters) unless otherwise noted 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow Package Number M14A www.fairchildsemi.com 4 74ALVC00 Low Voltage Quad 2-Input NAND Gate with 3.6V Tolerant Inputs and Outputs Physical Dimensions inches (millimeters) unless otherwise noted (Continued) 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide Package Number MTC14 Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and Fairchild reserves the right at any time without notice to change said circuitry and specifications. LIFE SUPPORT POLICY FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD SEMICONDUCTOR CORPORATION. As used herein: 1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, and (c) whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant injury to the user. 5 2. A critical component in any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness. www.fairchildsemi.com www.fairchildsemi.com |
