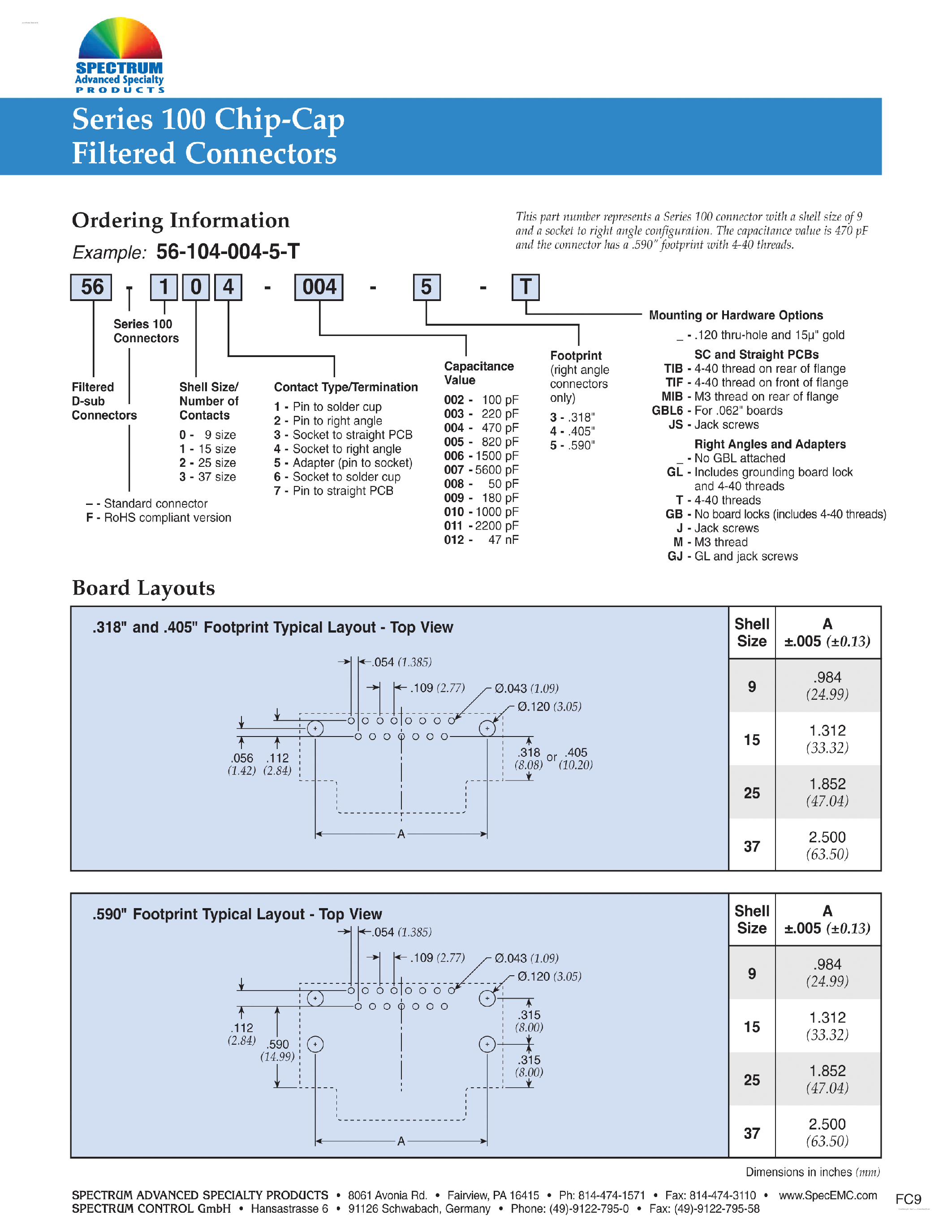

These versatile and widely used PCB connectors are an inexpensive filtering method that eliminates the problem of conducted electromagnetic interference (EMI). Chip-cap plug and receptacles are available in 9, 15, 25 and 37 positions. These connectors are “drop-in” replacements for nonfiltered D-subminiature connectors with matched PCB footprints. Housings are made of UL 94V-0 rated thermoplastic material. Low cost front metal shells are compatible with full metal-shell threaded insert mating hardware. Integral boardlocks secure posted connectors to the PC board, prior to soldering. Features ■ Offer economical, high performance EMI/RFI protection ■ Matched .318", .405" and .590" PCB footprints mean “Drop-in” replacement for nonfiltered connectors ■ Low cost chip capacitors ■ Connectors have industry standard interface ■ Connector insulators made of UL 94V-0 rated high temperature, thermoplastic ■ Connector body is recognized under the Component Program of Underwriters Laboratories, Inc. (E149046) ■ Connector body is certified by the Canadian Standards Association Mechanical Specifications Shells. . . . . . . . . . . . . . . . . Steel, tin plated Insulators . . . . . . . . . . . . . 94V-0 rated thermoplastic, . . . . . . . . . . . . . . . . . . . . . black Eyelets. . . . . . . . . . . . . . . . Brass, tin plated Threaded Inserts. . . . . . . . . Zinc Boardlocks . . . . . . . . . . . . . Copper alloy, tin plated Pin Contacts . . . . . . . . . . . Brass Socket Contacts . . . . . . . . . Phosphor bronze Contact Plating . . . . . . . . . Duplex plated . . . . . . . . . . . . . . . . . . . . . as follows: 15uin (.38um) . . . . . . . . . . . . . . . . . . . . . gold on mating end, with . . . . . . . . . . . . . . . . . . . . . entire contact 50uin (1.27um) . . . . . . . . . . . . . . . . . . . . . min. nickel underplated and . . . . . . . . . . . . . . . . . . . . . flash gold finish
